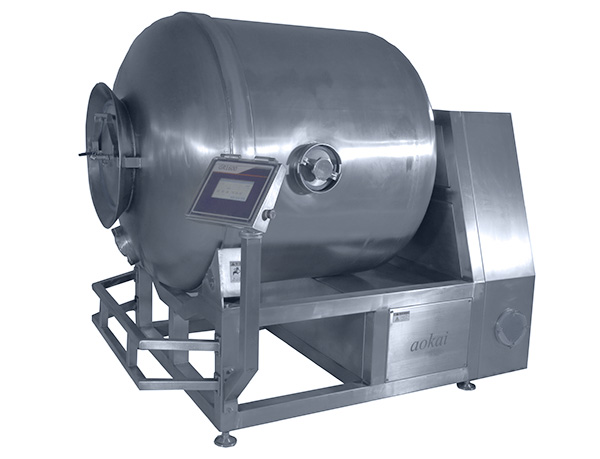

Vacuum Tumbler

Vacuum tumbler is common equipment used in meat processing.By applying the principal of physical impact,it makes the meat tumbling in the drum and repeatedly kneaded;

1 .Vacuum tumbler is common equipment used in meat processing.By applying the principal of physical impact,it makes the meat tumbling in the drum and repeatedly kneaded;

2. Vacuum space can make the meat absorbing adequate saline solution,increasing its moisture capacity and improving the yield;

3. Working time,quiescent interval,and vacuum degree may be set according to requirements of various types of workmanship.

4. Breathing type vacuum tumbler makes meat in the vacuum space and normal aire pressure alternatively while tumbling and kneading,in which means effectively shorten the working time;

5. The drive motor and vacuum pump are products of famous brands in China,and they have stable performance and low failure rates;

6. Both ends of the drum apply welded structures with screw-typ press caps,in which means the inner space of the drum is increased;

7. Vacuum feed-in hopper is equipped.


Type

Capacity(kg/h)

Drum volume(L)

Rotation speed(r/min)

Power

Weight(kg)

Dimension(mm)

AKGR200

60

200

7

1.5

200

1270*620*1100

AKGR500

200-300

500

7

2.6

380

1450*1150*1600

AKGR1200

500-700

1200

7

3.5

800

2000*1500*1800

AKGR1600

800-100

1600

7

5

1000

2100*1400*1600

AKGR2200

1000-1200

2200

7

6.2

1200

2200*1800*1900

AKGR3500

1500-2000

3500

frequency control 4-10

9.5

1800

3000*1650*2100

AKGR4600

2000-3000

4600

frequency control 4-10

11.5

2500

3300*1750*2300
